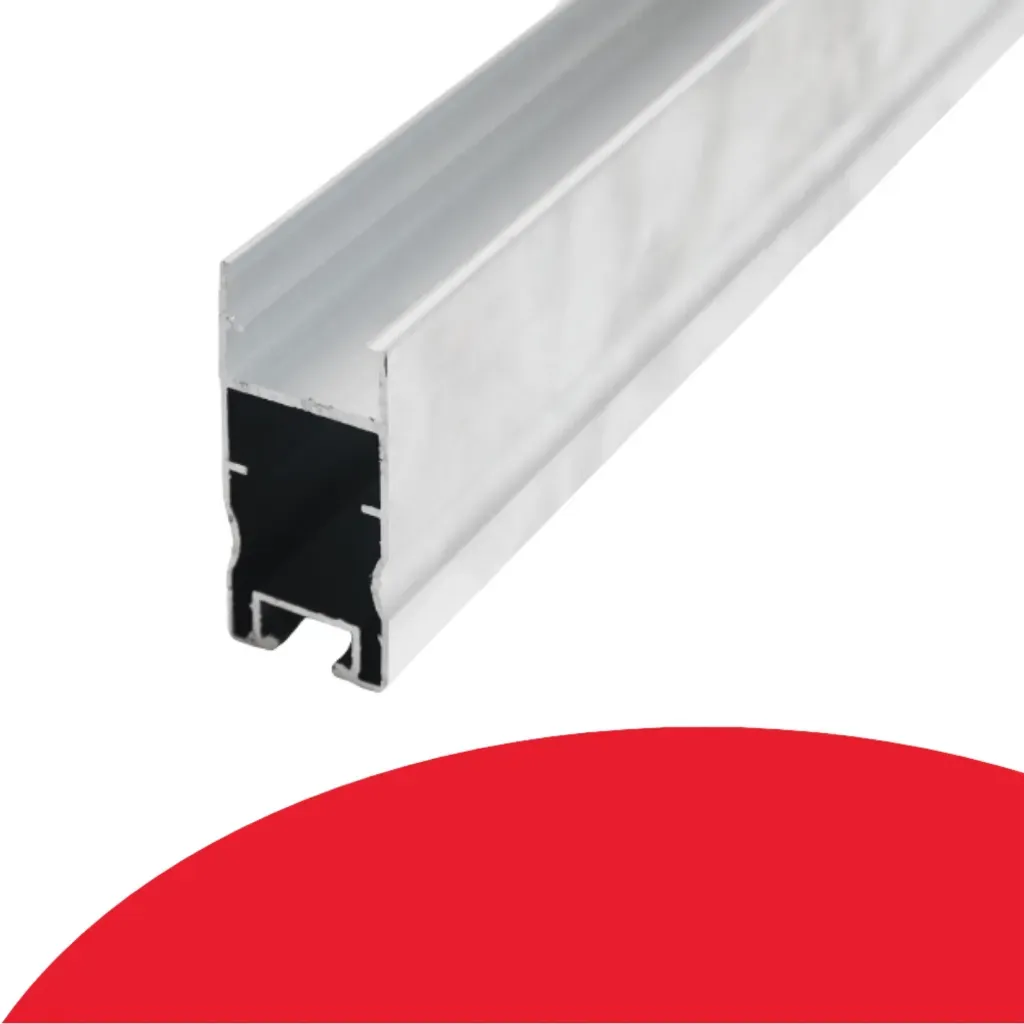

Schletter - FixZ Pro rail 4400mm
SKU: 120034-04400
Item ID: 2525
How does Schletter FixZ Pro rail work?
Schletter FixZ Pro rail it's a specific rail for Fix-Z Pro tilt system. It works with all Schletter EMU roof interfaces
Below is simplified step by step of its installation:
- Connect Rails: Use rail joiners to connect FixZ Pro rails together.
- Insert Splice: Put one half of the splice into the end of the first rail until it reaches the midpoint.
- Attach Second Rail: Connect the second rail to the other end until it reaches the middle stop plate, locking both rails together.
- No Screws Needed: This process doesn't require screws, saving installation time.
- Consider Length: Keep in mind the recommended maximum array length based on installation location.
- Single-Use Joiners: Remember, rail joiners are for one-time use only.
About Schletter Fix Z Pro
The Schletter Fix Z Pro system consists of fastening frames securing Proline rails which support PV modules. The pre-assembled components, slide-in rail joiners without the use of screws and click-in module clamps, account for ease of installation and industry leading installation times.
- Suitable for pitched roofs, flat roofs, and barrel roofs
- Ideal for metal roofs: trapezoidal, corrugated, Kliplok
- Slight increase at the upper module support in 90 mm increments
The components are made from Aluminium and High-Grade Steel allowing durability in adverse site conditions. The system comes with a 25-year warranty that is compliant with Australian Standards:
- AS/NZS 1170.2:2021 for wind actions
- AS/NZS 1170.1:2002 (R2016) for imposed loadings, and
- AS/NZS 1170.0:2002 for general principles.
THE AFFORDABLE ADDITIONAL GIRDER
For metal roofs with a slope of less than 10°, installing modules parallel to the roof may not be ideal for maximum yield and optimal self-cleaning. Conventional support by struts is also often impossible or uneconomical because of the higher loads.
In such cases, flat elevation angles – such as can be achieved with FixZ Pro – offer a universal, extremely flexible and cost-effective solution with ideal load transfer into the roof covering.
TECHNICAL DETAILS
- Field of application - Sheet metal roofs (trapezoidal, corrugated, Kliplok)
- Material - Profile: Aluminum
- Planning aid - Configuration and static dimensioning via the Schletter Configurator
- Statics - Spanning tables available to suit AUST/NZ standard
- Connection
- Top: FixGrid Pro single-click connection
- Bottom: M10 screw channel
- Warranty - 25 years in accordance with Schletter warranty terms
