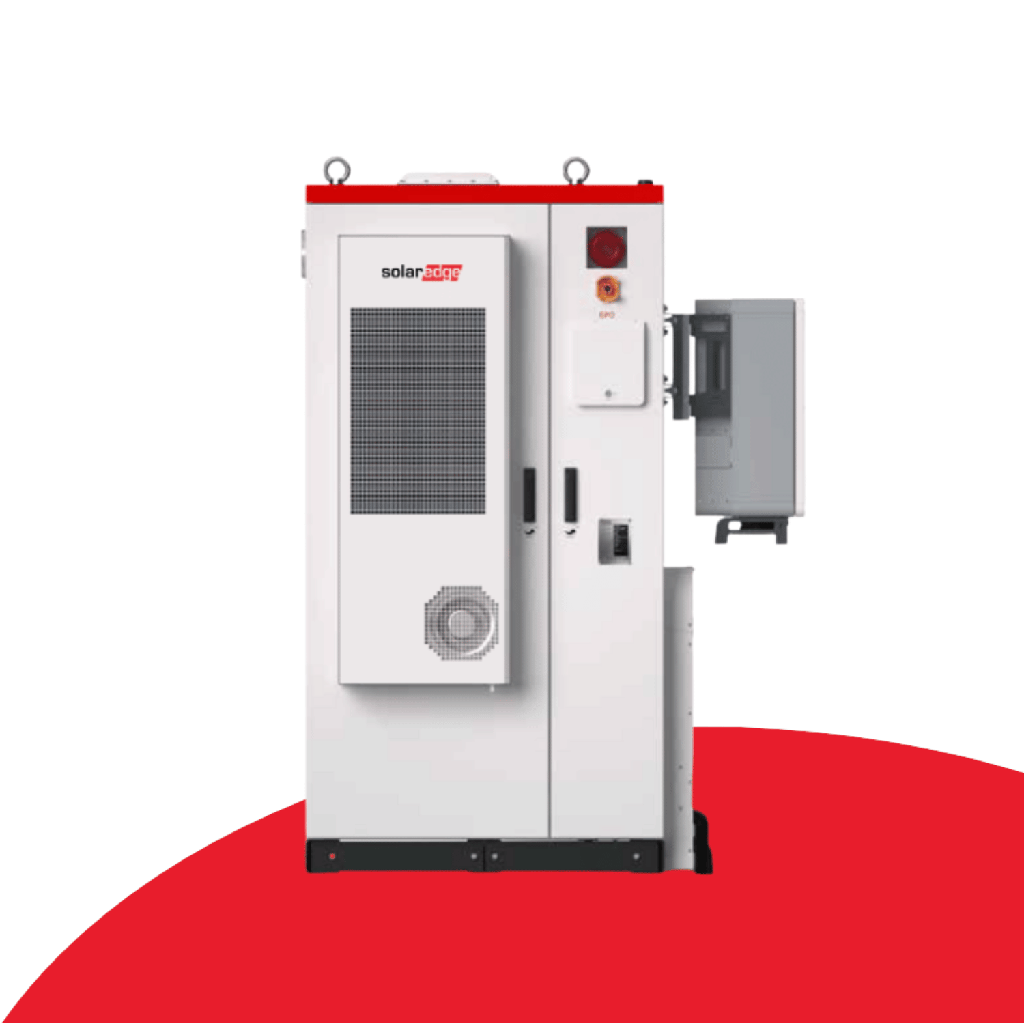

SolarEdge Commercial Storage System - 90kWh
SKU: CSS-OU-01-05-CA-090-01
The SolarEdgeCSS-OD 90 is a comprehensive energy storage solution specifically designed for commercial and industrial sites in Australia. This system combines a 90 kWh battery cabinet with a 50 kW battery inverter to provide reliable power management. The unit is pre-assembled and factory-tested to ensure quick and easy deployment.
It features the SolarEdge ONE platform, which optimizes energy production, storage, and consumption to maximize site savings. Built for durability, the compact cabinet can be installed both indoors and outdoors and includes advanced safety mechanisms like integrated fire suppression and multi-sensor physical security.
NOTE: Product is set to release 2nd Quarter of 2026.
Key Features SolarEdge Commercial Storage System - 90kWh:
Easy Installation
Pre-assembled and factory-tested for quick setup, featuring top-lifting eye bolts for easy placement.
Optimized Savings
Powered by SolarEdge ONE to manage site energy through modes like peak shaving, self-consumption, and tariff optimization.
Scalable Capacity
Allows for expansion up to 2 MWh of total storage capacity to meet growing energy requirements.
Advanced Safety
Integrated photoelectric smoke detectors, fire extinguishers, and NOVEC 1230 suppression agent.
Physical Resilience
Includes flood, door, and heat sensors, plus integrated pressure relief valves and deflagration panels.
Reliable Monitoring
Real-time electrical safeguards including earth fault detection, leakage fault detection, and surge protection.
Software Integration
Uses SolarEdge Go software to accelerate configuration and commissioning processes.
Unpacking, mounting, wiring & commissioning SolarEdge CSS OD commercial battery
SolarEdge Commercial Storage System - 90kWh Basic Specs:
- Total Battery Capacity: 89.6 kWh
- Usable Battery Capacity: 85.12 kWh
- Rated AC Active Power Output: 49.9 kW
- Battery Chemistry: LFP (Lithium Iron Phosphate)
- Maximum Inverter Efficiency: 97.5%
- Nominal Voltage: 320 V
- Ingress Protection: IP54 (Cabinet) / IP66 (Inverter)
- Operating Temperature: -30 to +50 degrees Celsius
- Dimensions (Cabinet): 1050 x 1371 x 2085 mm
- Weight (Cabinet): 1233 kg
- Weight (Inverter): 80 kg
What’s Included:
- 1 x SolarEdge CSS-OU-090 Battery Cabinet
- 1 x SolarEdge PCS050BA Battery Inverter
- 5 x Battery Modules (17.92 kWh each)
- Built-in HVAC cooling system
- Integrated 4 crane eye bolts
- 10-year product and performance warranty
System Compatibility: Essential SolarEdge Components
- Storage Unit: The SolarEdge 90kWh Battery Cabinet provides the primary LFP energy storage capacity.
- Power Conversion: The SolarEdge 50kW Battery Inverter is the required partner to manage power conversion and grid interaction.
- Required Connection: The SolarEdge Commercial Storage Cable Kit is the essential link for DC power and data communication between the cabinet and inverter.
