Clearance

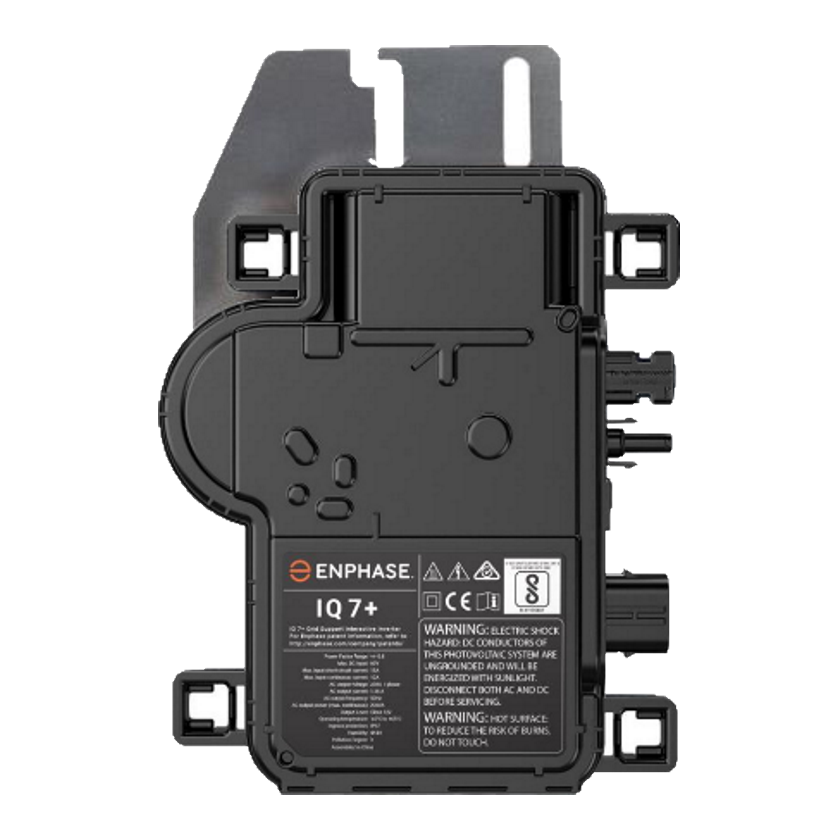

Discounted - Enphase IQ7+ microinverter (290W) - Built-in DC connector
IQ7PLUS-72-M-INT
290VA nominal
MC4 DC connectors
female AC connector
Compatible with 60-cell and 72-cell PV modules
Enphase IQ7+ Microinverter
The smart-grid ready Enphase IQ7+ Microinverter is built on the seventh-generation platform and achieves the highest efficiency for module-level power electronics. Its polymeric enclosure and revolutionary cabling system simplify installation.- Optimised for high powered 60-cell & 72-cell modules only
- Max Output Power: 290 VA
- Recommended PV module input power: 235W - 440 W+
- MPPT Range: 27V - 45 V
- EN 50530 (EU) weighted efficiency 96.5%
- Complies with advanced grid support, voltage and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for varying grid profiles
Easy to Install
- Lightweight and simple
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown
Productive and Reliable
- Optimised for high powered 60-cell & 72-cell modules only
- More than a million hours of testing
- Class II double-insulated enclosure
- Clean Energy Council (CEC) listed
Smart Grid Ready
- Complies with advanced grid support, voltage and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for varying grid profiles
- Meets CA Rule 21 (UL 1741-SA)
Mechanical Data
- Connector type: MC4 locking type
- Dimensions (WxHxD): 212 mm x 175 mm x 30.2 mm (without bracket)
- Weight: 1.08 kg
- Cooling: Natural convection - No fans
- Approved for wet locations: Yes
- Enclosure: Class II double-insulated
- Environmental category / UV exposure rating: NEMA Type 6 / outdoor
Enphase IQ7 is more powerful than anything you've seen before
- 96.5% EU efficiency
- 23% more power than S230
- 47% lighter than S270
- IP67 double insulated enclosure
- Smart Grid ready
- Unique new Q Cable system that is lighter and more flexible to use
- Works with Envoy-S Metered
